Equipped with a
USB output, the AT2020USB+ is designed for digitally capturing music or any
acoustic audio source using your favorite recording software.
The microphone offers the critically acclaimed, award-winning sound of the AT2020,
with studio-quality articulation and intelligibility perfect for singer/songwriters,
podcasters, voice-over artists, field recorders, and home studio recorders.
The AT2020USB+ features a built-in headphone jack with volume control that allows you to
directly monitor your microphone signal with no delay.
It also offers mix control that blends microphone and pre-recorded audio.
The microphone’s cardioid pickup pattern delivers excellent off-axis rejection,
while its A/D converter with a 16-bit, 44.1/48 kHz sampling rate ensures extremely articulate sound reproduction.
Audio-Technica’s state-of-the-art design and manufacturing techniques
ensure that the microphone complies with the company’s renowned consistency and reliability standards.
ELEMENT |
Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN |
Cardioid |
| FREQUENCY RESPONSE |
20 – 20,000 Hz |
| POWER REQUIREMENTS |
USB Power (5V DC) |
| BIT DEPTH |
16 bit |
| SAMPLE RATE |
44.1/48 kHz |
| VOLUME CONTROL |
Mix control;
Headphone volume control |
| WEIGHT |
386 g (13.6 oz) |
| DIMENSIONS |
162.0 mm (6.38") long,
52.0 mm (2.05") maximum body diameter |
| OUTPUT CONNECTOR |
USB-type |
| HEADPHONE OUTPUT POWER |
130 mW (at 1 kHz, 10% T.H.D., 32 ohm load) |
| HEADPHONE JACK |
3.5 mm (1/8") TRS (stereo) |

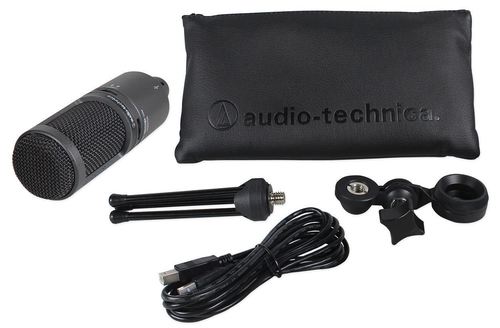

| ACCESSORIES FURNISHED |
Pivoting stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch; tripod desk stand; 10’ (3.1 m) USB cable |
